GMP POD Semi Automatic Roll Laminators (Korea)

QTOPIC Series

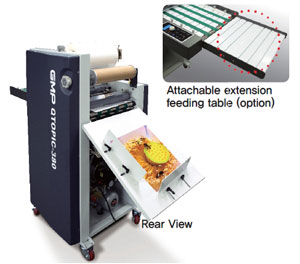

  • Qtopic-380

Perfect & Easy Operation for Digital Printing On Demand Solution

SPECIAL FEATURES
  • Using household power supply (220~240V)
  • Environmentally-friendly Thermalami® system
  • Perfect lamination for wide range of Lamination
      - POLYNEX(BOPP base) film
      - NYLONEX(NYLON base) film
      - PERFEX(PET base) film
  • Space-effective compact design for office, copy shop & photo shop
  • Automatic paper feeding gap control system and automatic burst cutting system
  • Film tension control device and decurling device are equipped
  • Capacitive touch screen
  • Sleeking solution & MICRONEX lamination with re-winder unit
      - Gloss, Matt, Hologram, Metallic sleeking film
      - MICRONEX(overlay coating) laminating film
  • Air compressor included

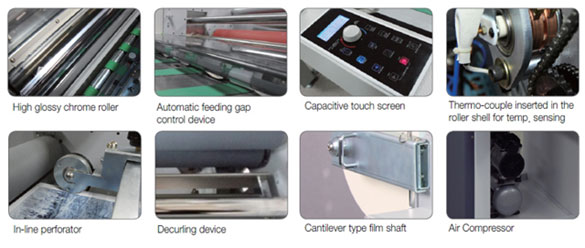

FEATURES
  • Exchangeable/Commonized PCB
  • Automatic feeding paper gap control
  • Air compressor (with light weight & lower noise) is placed inside the body
  • Strengthened laminating pressure for more stepped-up bonding power effecting perfect quality of output
  • Ergonomic touch screen for enhancing operator-centric convenient control & quality productivity
  • Cantilever type film shaft for easy film loading
APPLICATION
  • Poster, pop sign, menu
  • Book cover & jacket
  • Photo graph & album
  • Name card
  • Gift certificate
  • Label (Micronex Lamination)
  • Greeting Cards / Year book
Basic patterns of embossing roller (option)
SPECIFICATION
  QTOPIC-380
Dimension (W*L*H, mm)  720*1700*1350mm
Laminating speed 1.5m/min ~ 10m/min
Paper size (W*L, mm) Max : 380*500mm (option: 1200mm)
Min : 180*210mm
Laminating films Single Side: POLYNEX (20~43mic),
PERFEX(25mic), NYLONEX(27~44mic)
MICRONEX (6~10mic) : Gloss, Matt, Hologram
Sleeking  Gloss, Matt, Hologram, Metallic
Substrate thickness 120 ~ 350g/m2
Front roller diameter Top: high glossy chrome ∅100
 Bottom: silicon ∅80
Rear roller diameter silicon ∅55
Power requirement AC 220~240V, 50/60Hz, 12A
Power consumption 2.8kw
Warm-up time 5 min.
Heating system INFRARED HEATER
Laminating temp.  MAX.150
Temp. control Capacitive Touch Screen
Speed control Capacitive Touch Screen
Display system LCD Panel
Roller pressure  Pneumatic Cylinder
Film core size 77mm (3”) / Dual - 58mm, 50mm
Air Compressor 1 HP, 89L/min
Temp. Sensing method Thermo-couple inserted in the roller shell
Net Weight 187 kg
